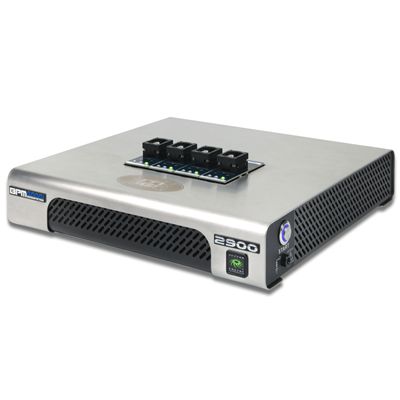

Precision Production Programmer.  Multi-site manual production programmer ideal for volumes from 1K to 100K per year. Excellent for smaller jobs with long programming times.

Performance

Our latest 9th Generation programming technology combines true universal device support with the industry’s fastest programming speeds. We combined our powerful Vector Engine Co-Processor®, capable of achieving an amazing peak operating rate of 24Gbits per second, with true universal device support for MCUs, managed NAND, flash memory and more to give you the ultimate solution to your device programming requirements.

What’s Inside

Our Vector Engine Co-Processor accelerates flash memory waveforms during the programming cycle. Faster speeds are achieved through synchronous operations that eliminate the dead times when the DUT waits on the programmer. The result is programming near the theoretical limits of the silicon design– the faster the device, the faster the device is programmed.

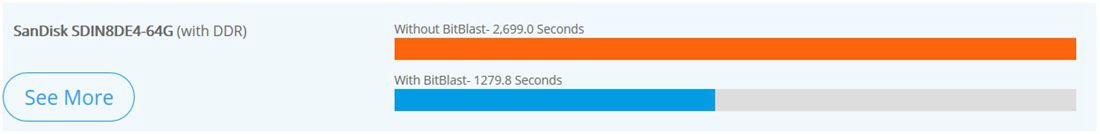

BPM’s Vector Engine BitBlast turbocharges programming- up to 52% faster



Versatility and Capacity

OneNAND, eMMC, iNAND, MLC, SLC, MCU, PLD– whatever your device type, the 2900 can support it. Plus, you can connect up to eleven programmers to one PC for concurrent programming of up to 44 devices!

High-Quality Socket Cards

Socket cards provide the electro-mechanical interface between your device and the programmer. They’re precisely designed to deliver high-fidelity waveforms to the programmable device, ensuring very high first-pass yield. Each individual socket card can be fully utilized and easily replaced to maintain full programming capacity. Our socket card design, with a receptacle socket option, ultimately increases your manufacturing uptime, produces higher first-pass yield, and saves replacement costs by as much as 75 percent.



Complete Ecosystem

BPM Microsystems has ownership of all designs, manufacturing, and support for all programming sites, robotics, vision systems, and software, so we can provide unmatched support and responsiveness

• Reduce your time to market by doing New Product Introduction/First Article through Automated Production with the same hardware, algorithms, and software
• 2900 and 2900L for 9th Gen Manual Production and Fast First Articles, plus 2710 and 1710 7th Gen Manual Programmers; the New 3901, 3910, 4900 & 4910 for Automated Production— only BPM can deliver
