产品名称:BPM第九代手动烧录器 - 压杆型
产品型号:FP2900L
   产 品 说 明

The 2900L

Universal Chip Programming with Precision Socket Actuator Lever

Precision High Volume Production Manual Programmer– the 2900L is a multisite manual production programmer ideal for volumes from 1K to 500K+ per year. BPM’s 2900L is excellent for smaller jobs with long programming times.

Improved Production Throughput

Operators can consistently actuate sockets while placing and removing devices, minimizing fatigue from opening standard and high-tension sockets by hand. Precision socket actuation increases socket longevity. Opening the socket fully and evenly every time minimizes the potential for bent pins on programmable devices. The Universal Pressure Plate supports virtually all available production sockets and allows for quick package changes and adjustments.

Performance

For ultimate performance, we combined our powerful Vector Engine Co-Processor®, capable of achieving a peak operating rate of 12.8 Gb per second, with true universal device support for MCUs, managed NAND, flash memory and more.

What’s Inside

Our Vector Engine Co-Processor accelerates flash memory waveforms during the programming cycle. Faster speeds are achieved through synchronous operations that eliminate the dead times when the DUT waits on the programmer. The result is programming near the theoretical limits of the silicon design– the faster the device, the faster the device is programmed.

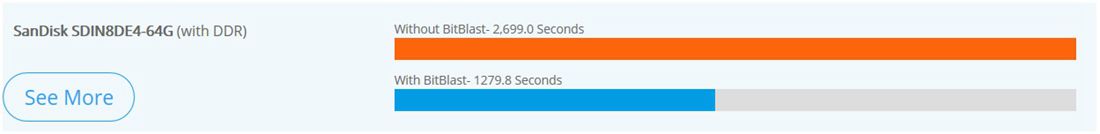

BPM’s Vector Engine BitBlast turbocharges programming- up to 52% faster



Versatility & Capacity

OneNAND, eMMC, iNAND, MLC, SLC, MCU, PLD―whatever your device type, the 2900L supports it. Plus, you can connect up to eleven programmers to one PC for concurrent programming of up to 44 devices!

High-Quality Socket Cards

FVE4ASML49BGK Socket

Socket cards provide the electro-mechanical interface between your device and the programmer. They’re precisely designed to deliver high-fidelity waveforms to the programmable device, ensuring very high first-pass yield. Each individual socket card can be fully utilized and easily replaced to maintain full programming capacity. Our socket card design, with a receptacle socket option, ultimately increases your manufacturing uptime, produces higher first-pass yield, and saves replacement costs by as much as 75 percent.



Complete Ecosystem

BPM Microsystems has ownership of all designs, manufacturing, and support for all programming sites, robotics, vision systems, and software, so we can provide unmatched support and responsiveness

  • Reduce your time to market by doing New Product Introduction/First Article through Automated Production with the same hardware, algorithms, and software
  • 2900 and 2900L for 9th Gen Manual Production and Fast First Articles, plus 2710 and 1710 7th Gen Manual Programmers; the New 3901, 3910, 4900 & 4910 for Automated Productiononly BPM can deliver
