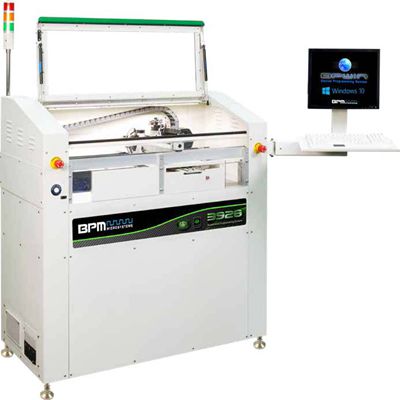

The 3928

The Small Footprint/High Throughput Automated Programmer with 75% More Capacity (Compared to the 3901/3910)

The 3928 is suitable for medium to high volume and high mix production

High-Speed/High Capacity Programming

The 3928, with up to seven sites,  is made for programming large data devices, such as  MCUs, eMMC HS400, NAND, NOR and Serial Flash devices.  High-speed signals support devices up to 200 Mhz and the latest eMMC HS400 modes with data transfer rates of 2.5 nanoseconds per byte. With data transfer rates to 50 Gb per second, and verify rates up to 200 MB per second, the 3928 offers the industry’s fastest times with even more capacity compared to other systems in its class. This is up to 9 times faster than competing “universal” programmers, offering the Largest Memory Support in the industry―256 GB, upgradeable to 512 GB. Plus, by downloading image files up to 25 MB per second to all programmers simultaneously, the system rapidly produces devices at maximum achievable throughput.

WhisperTeach™

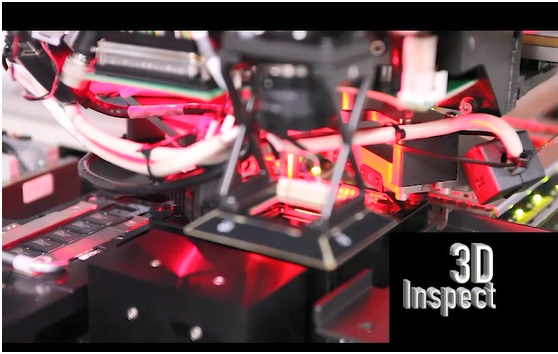

CyberOptics™ Vision

What’s Inside

Our Universal 9th Gen Technology with Vector Engine Co-Processor accelerates flash memory waveforms for programming near the theoretical limits of silicon design. The faster the device, the faster it’s programmed. Combined with BPWin, the most advanced feature-rich process control software in the industry, on-the-fly vision alignment, and WhisperTeach™, the 3928 is in a class by itself. A full lineup of Input/output options is available, along with a CO2 laser marking system for 100% part traceability.  Finally, BPWin software API tools integrate your device programming process with your MES, allowing you to monitor and control inventory in real time.

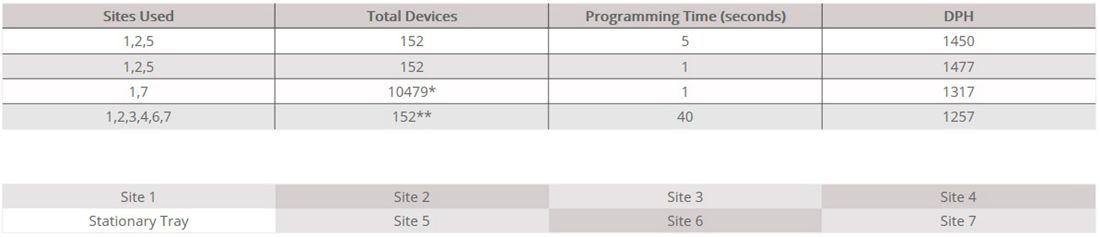

3928 Benchmarking Tests (6 Sites)²Testing October 22-23, 2019 with BGA Devices

*Testing maximum travel (Site 1 location upper left; Site 7 location lower right)
**Increased programming time to force using 6 sites

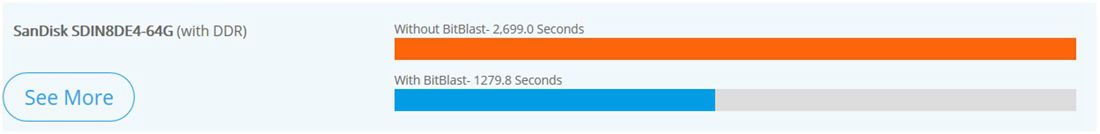

BPM’s Vector Engine BitBlast turbocharges programming- up to 52% faster

Optional Automated Peripherals

• Laser Marker
• Tray Stacker
• Tape Input/Output
• Tube Input/Output
• Tray Shuttle





True Universal Support

The 3928 offers true universal support―one solution for all your device programming requirements. It’s compatible with most existing 7th Gen and 8th Gen socket cards and algorithms, so our customers retain the value of asset investments and reduce time-to-market by leveraging existing socket card designs for future support. One universal programming site accommodates all devices, reducing the number of systems, sites, and sockets needed. That saves you money, training, complexity and floor space.

High-Quality Socket Cards

Socket cards provide the electro-mechanical interface between your device and the programmer. They’re designed to deliver high-fidelity waveforms to the programmable device, ensuring very high first-pass yields. Each individual socket card can be fully utilized and easily replaced to maintain full programming capacity. Our socket card design, with a receptacle socket option, ultimately increases your manufacturing up-time, produces higher first-pass yields and reduces replacement costs by up to 75 percent.
